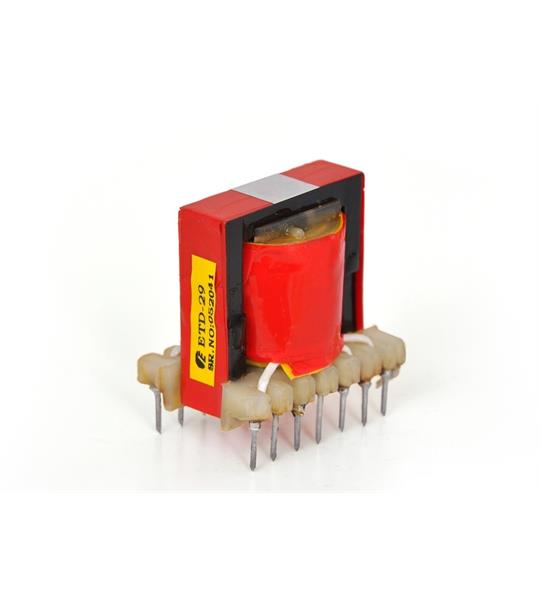

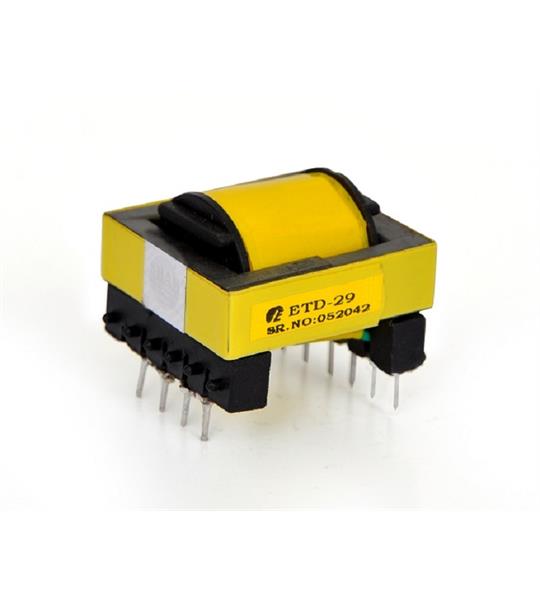

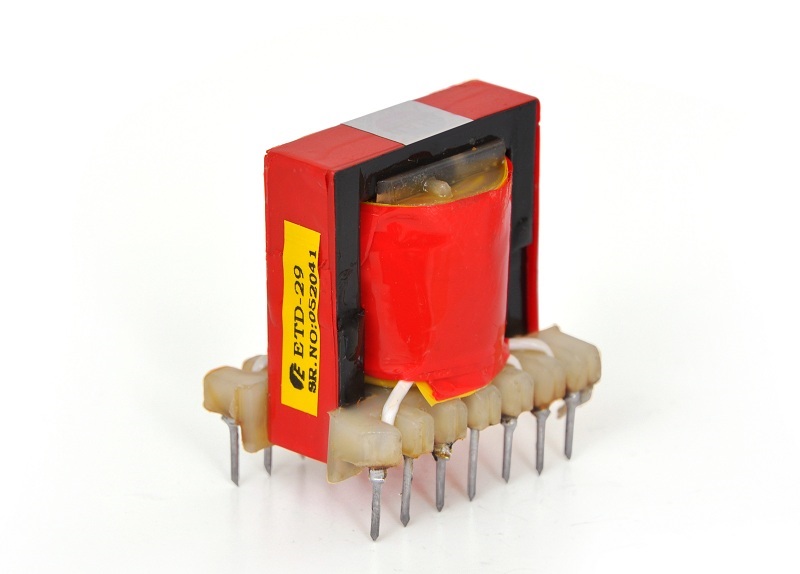

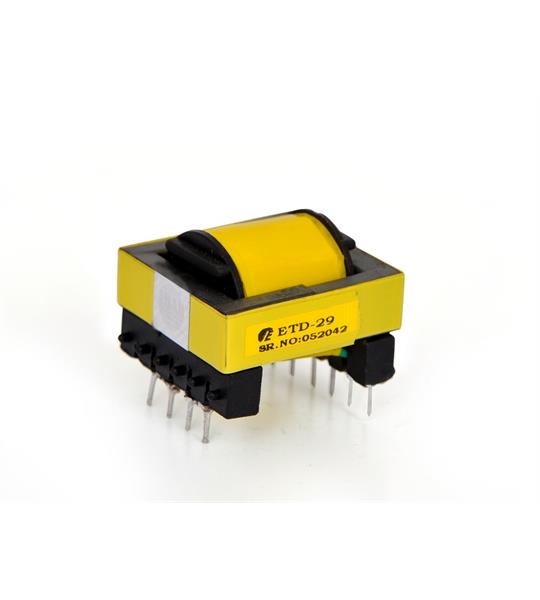

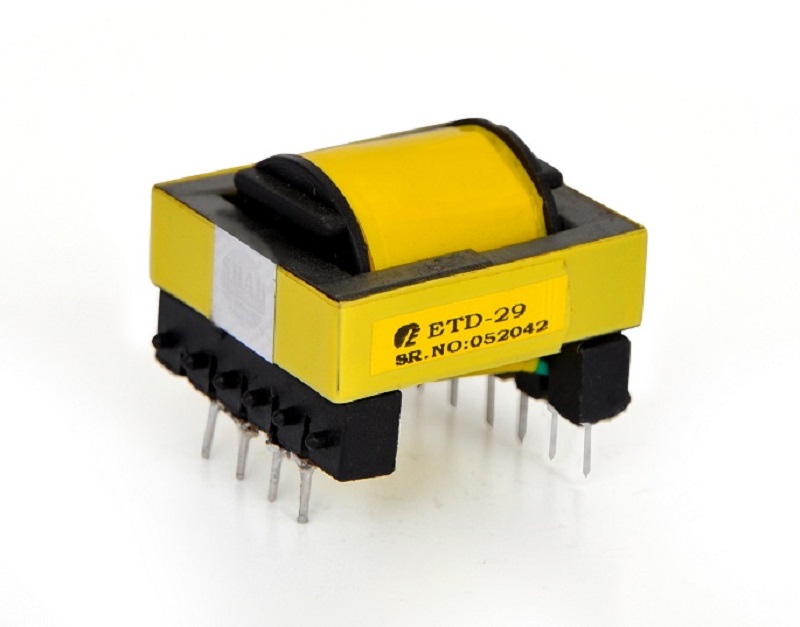

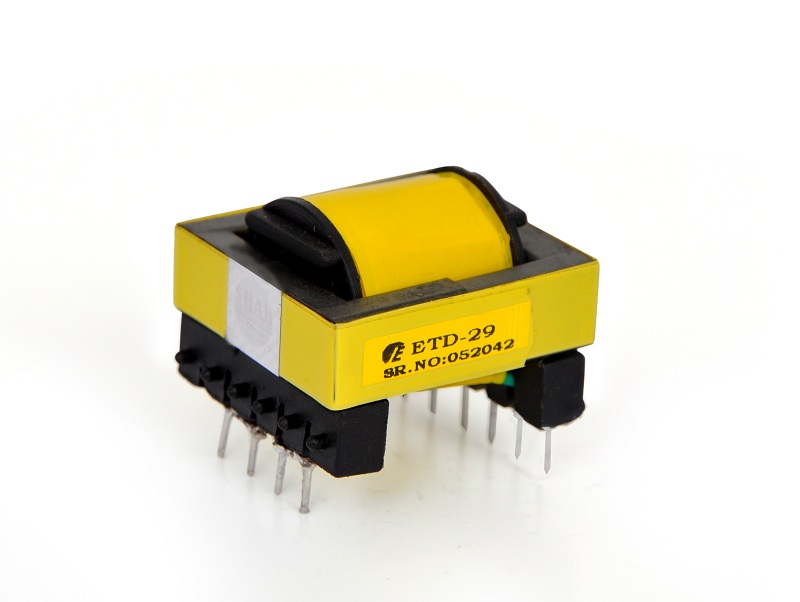

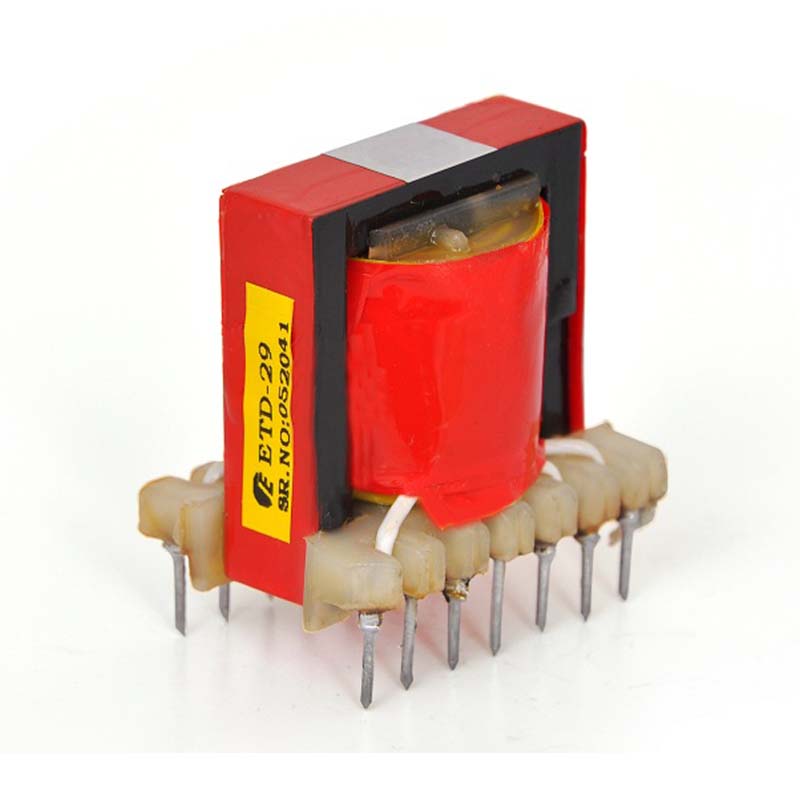

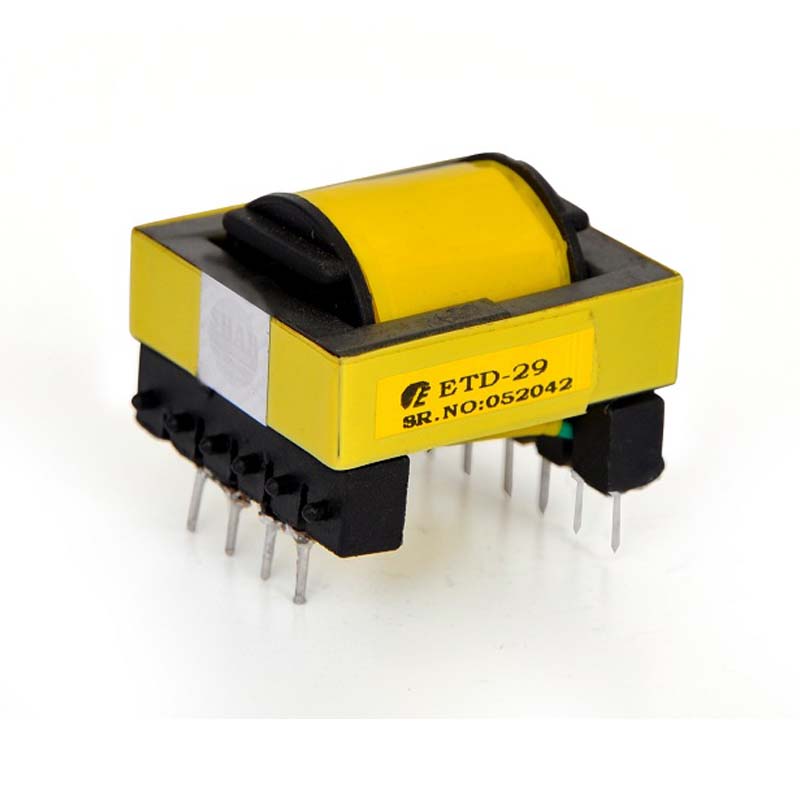

FERRITE TRANSFORMER

Product Code : SE-ETD-2910

Request Quote

FERRITE TRANSFORMER

Product Code : SE-ETD-2910

Request Quote

Product Highlights

    ETD Series Core Transformers are high-efficiency transformers designed with ETD (Economic Transformer Design) ferrite cores. These cores offer a balance between high magnetic performance and compact design, making them ideal for medium to high power applications. ETD transformers are widely used in high-frequency switch mode power supplies (SMPS), offering low core losses, excellent thermal stability, and ease of winding due to their bobbin-friendly geometry.

Product Applications


E Vehicle

IGBT Gate Drive Transformer

LED Driver Transformer

Medical Devices

SMPS Power Supply

Solar Inverter

Switch Mode Power Supplies

Technical Information

L

29 mm

Core Type/Size

ETD-CORE-CORE-2910

Operating / Switching Frequency

50 Hz

Donwnloads ( Cad Drawings )

SE-B-005 ETD-29 14 PIN HORIZONTAL

SE-B-186 ETD-29 12 PIN VERTICAL

SE-B-033 ETD-29 12 PIN HORIZONTAL

SE-B-049 ETD-29 14 PIN VERTICAL

SE-B-006 ETD-29 20 PIN VERTICAL (WHITE)
