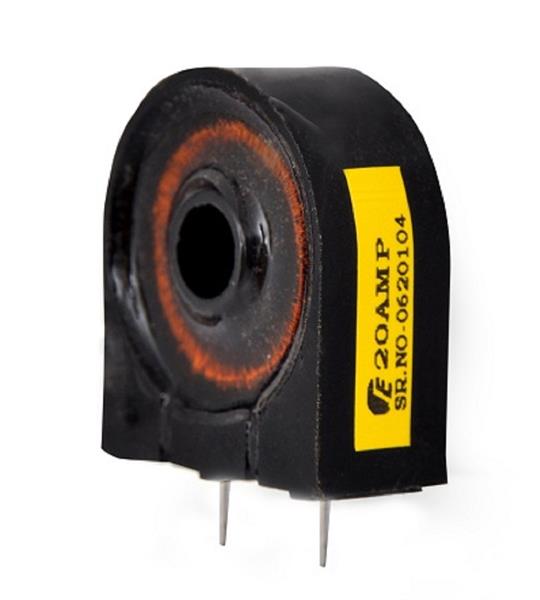

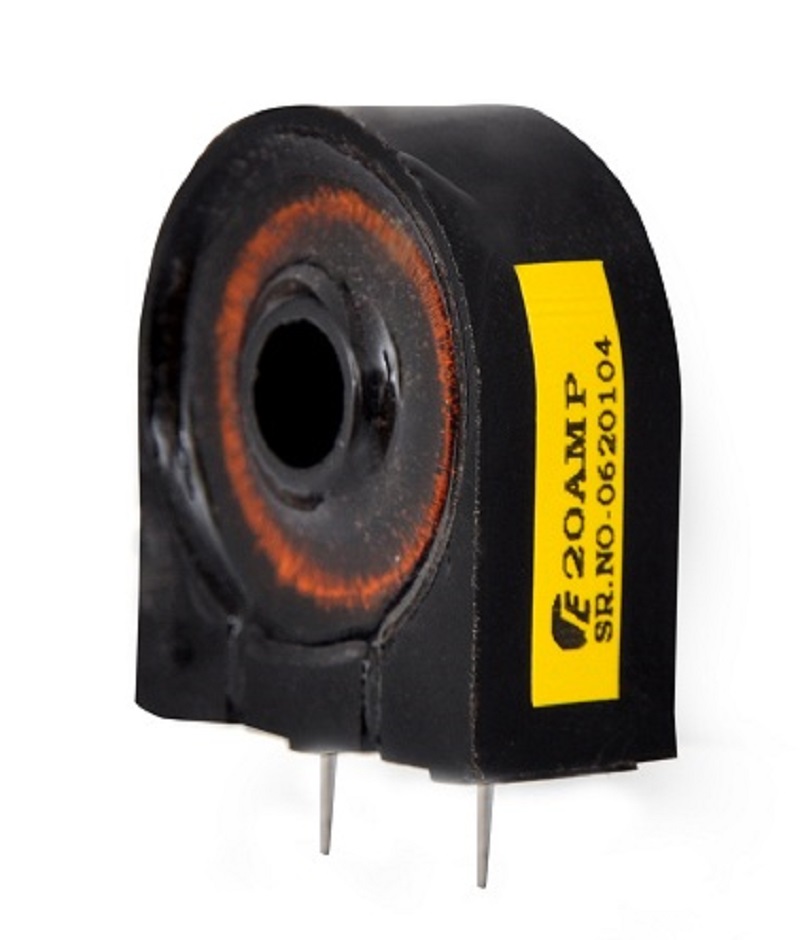

20 AMP. CURRENT TRANSFORMER

Product Code : SET2106-2500-20APCM


  • Designed and developed as per European Standards IEC : 62053-21 / IS: 13779 , IEC : 60044-1 Part-1.
  • Ideal for Electronic Safety Control Gear design ,
  • Overload Sensing , Furnace Temperature Control ,
  • Motor Speed Control , Instrument Transformer ,
  • Energy Metering ,
  • Power Quality Monitoring.
  • Home Automation Devices
  • Earth Leakage Circuit Braker CT ( ELCB CT )
  • Residual Current Circuit Braker CT ( RCCB CT )
  • Ground Fault Interruptor CT ( GFI CT )
  • Variants available in Self Wire (Flying Leads) or PCB Mounting Type CT.


Product Application

Technical Information

Inner Dia7 mm

Mounting TypePCB Mount

Accuracy Class1

Voltage Recommended Burden0.4@50

Height11 mm

Power Rating0 VA

Operating / Switching Frequency60 Hz

Rated Current Ir20 Amp

Ratio1:2500

Saturation Current Isat30 Amp

No. Of Windings1
